Electrical Surgical Unit Plasma Surgical Device For Urethratresia Surgery

Electrical Surgical Unit Plasma Surgical Device For Urethratresia Surgery

  • Electrical Surgical Unit Plasma Surgical Device For Urethratresia Surgery
  • Electrical Surgical Unit Plasma Surgical Device For Urethratresia Surgery
Electrical Surgical Unit Plasma Surgical Device For Urethratresia Surgery
Product Details:
Place of Origin: China
Brand Name: MECHAN
Certification: CE, ISO13485
Model Number: PLA600
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD set
Packaging Details: carton
Payment Terms: T/T, L/C
Supply Ability: 100000 sets per year
Contact Now
Detailed Product Description
Advantage: Less Pain Surgery Weight: 7kg
Type: Glod Standard System Compatible Device: Mechan Urology Plasma Hemostasis
Application: BPH, Bladder Tumor Color: Red
High Light:

probe medical instrument

,

medical surgical equipment

Plasma Surgical Device/Electrical Surgical Unit / Urology Plasma Generator for Urethratresia Surgery



Product Parameters:

Input Volt

197-240V 50Hz

99-121V 60Hz

Export device could convert automatically per customer requirements

Output Power

Ablation and resection: ≤352W

Coagulation and hemostasis: ≤112W

Working Frequency 103 KHz ± 10%
Dimension 406*441*131mm (L*W*H)
Working Mode

Ablation and resection: level 1-10

Coagulation: level 1-10

Weight 7.0kg



Product description:

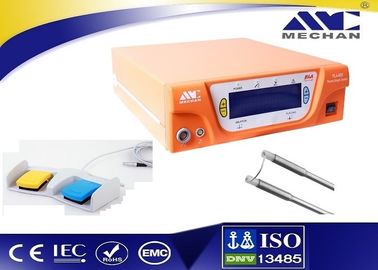

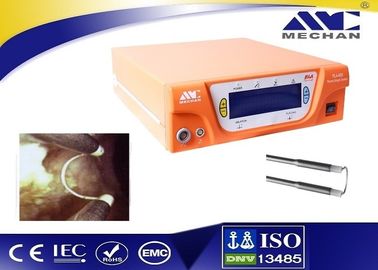

Mechan Urology Plasma Surgery System contains:

1). One tabletop machine

2). One reusable and non-sterile power supply cable.

3). One reusable and non-sterile handle.

4). One reusable and non-sterile foot control.

5). Treatment probes.

The system generates the plasma energy, which is to target treatment part through treatment handle and probe. Before use, the handle should be bent a little. And there are bipolar and multipolar probes supplied.



Indications:

Urethratresia, Urethral stricture, bladder tumor, etc.



Storage:

This device should be stored in a well-ventilated room without corrosive gas. The height above ground and the distance from wall should be above 30cm. Stack limit is 6 cases. Before being stored for a long time, it should be cleaned thoroughly for proper packing and storage. And it should also be taken out for power up every year, in order to avoid it from moisture, mildew or even damage. The suitable weather and environment condition is as below:

1. Temperature: -40℃~+55℃;

2. Relative humidity: ≤90%;

3. Atmospheric pressure: 50kPa~106kPa



Product Features:

1. Bipolar or multi-polar cutting, low temperature ablation, resection, hemostasis and coagulation, minimally- invasive, safe and reliable way.



2. Two ABLATION modes (including channeling, resection, hemostasis and ablation).


3. One PLACOAG mode (including hemostasis and coagulation).



4. Different types of probes available for options. The length, diameter, radian, energy level of probes are designed as per the requirements of different locations and diseases.


5. Multi-function probe designed for ablation, coagulation, hemostasis and resection. All functions are achieved at the same handle and in same output socket, thus no need to change probes frequently during surgery.



Electrical Surgical Unit Plasma Surgical Device For Urethratresia Surgery 0
