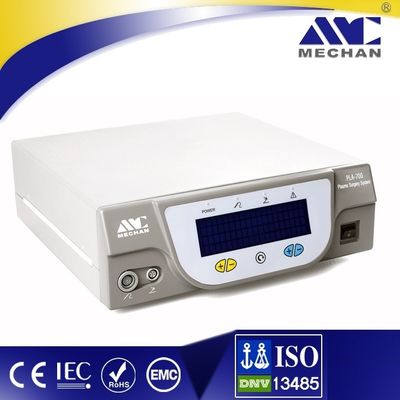

Orthopedic Plasma Surgery System for Spine and Joints Treatment

Orthopedic Plasma Surgery System for Spine and Joints Treatment

  • Orthopedic Plasma Surgery System for Spine and Joints Treatment
Orthopedic Plasma Surgery System for Spine and Joints Treatment
Product Details:
Place of Origin: China
Brand Name: MECHAN
Certification: CE, ISO
Model Number: PLA-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 1-5weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 units per day
Contact Now
Detailed Product Description
Model No.: PLA-800 Brand: MECHAN
Applying Field: Spine And Sports Medicine Packing: Paper Box
Net Weight: 7KG Compatible Probe: PLA301, PLA302, PLA203, PLA306, PLA407, PLA408
Warranty: 2 Years
High Light:

Reverse Torsion Utm Machine

,

Utm Reverse Torsion Machine

Orthopedic Plasma Surgery System for Spine and Joints Treatment


Product Introduction
This PLA-800 Orthopedic plasma surgery system are designed especially for Spine and Sports Medicine treatment. Such as knee, shoulder, elbow, wrist, spine, cervical, ect.
Product Diagram


Orthopedic Plasma Surgery System for Spine and Joints Treatment 0

1 Plasma Generator2 Power Cord3 Footswitch Plate4 ABLATION Control
5 PLACOAG Control6 Plasma Probe7 Receptacle of Footswitch8 Receptacle of Handle


Working Principle
A 50 μm plasma area is formed around the electrode through a conductive medium (mainly H2O, NaCl and air). Unlike traditional electrosurgical methods, which separate and solidify tissues by heating the tissue, Metron plasma knives use the kinetic energy generated by the rapid movement of plasma in an electric field at 100 kHz to decompose the tissue, thereby achieving the purpose of cutting and clotting.

Technical Parameter

Input Volts198-240V 50Hz
100-120V 60Hz
Export device could convert automatically per customer requirements
Output PowerAblation or resection: ≤351W
Coagulation or hemostasis: ≤111W
Working Frequency100 KHz ± 10%
Dimension405*440*130mm (L*W*H)
Working ModeAblation and resection: level 1-10
Coagulation: level 1-10
Weight7.0kg


Product Advanatages

  • Safety: multi-polar design, change the traditional way that current flow through human body
  • Low Temperature: 40 to 70 centigrade during operation, decrease the thermal damage to around normal tissue
  • Precise cutting: the thin plasma layer make precise cutting becoming true, and it will not hurt the around normal tissue
  • Speedy cutting: cutting and coagulation at the same time, no need to change the probe frequently, saving operation time
  • Shorten recovery period: less hurt to human body, recovery faster



DescriptionRemark
Manufacturer LogoMECHEN Brand.
PadsInsulation and support on the surface.
Receptacle of FootswitchConnects with Footswitch which determines ablation or coagulation mode.
Receptacle of Treatment HandleConnects with the treatment accessories.
Power SwitchSystem start power button. “O” means power off; “I” means power on.
ABLATION mode SelectorSelect ABLATION mode 1 or 2 Output waveform.
Indicator of Treatment Probe ConnectionLED turns on green when the probe cable is connected and turns on red when it is not connected.
Indicator of Footswitch ConnectionLED turns on green when the footswitch cable is connected and turns on Red when it is not connected.
ABLATION Power Setting DisplayShows the preset ABLATION output value in two digits.
“01” with Min. power output, and “10” with the highest output.
Ablation Output Power Up/Down ButtonThe number displayed indicates the ablation nominal power, in watts, which will be delivered to the patient when the mode is activated. Only available for changing in ready mode.


System Features
1. Push-button operation, easy to use;
2. Real-time monitoring of the tissue impedance value during the surgery to tell the degree of surgery;
3. peeling cutting probe(electrode), cutting is more convenient and rapid;
4. more surgical electrodes to choose to meet more parts of tissue ablation, cutting, coagulation and hemostasis;
5. ablation cutting mode 1, ablation cutting mode 2, to meet the ablation cutting needs of different organizations.


Storage Condition

This device should be stored in a well-ventilated room without corrosive gas. The height above ground and the distance from wall should be above 30cm. Stack limit is 6 cases. Before being stored for a long time, it should be cleaned thoroughly for proper packing and storage. And it should also be taken out for power up every year, in order to avoid it from moisture, mildew or even damage. The suitable weather and environment condition is as below:
1. Temperature: -40℃~+55℃;
2. Relative humidity: ≤90%;
3. Atmospheric pressure: 50kPa~106kPa
