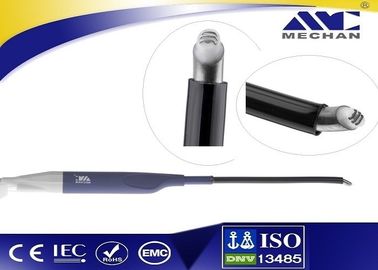

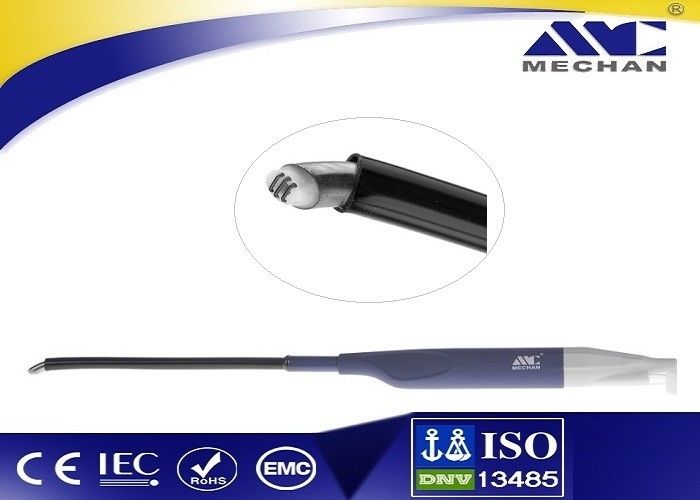

Tonsillectomy RF Portable Plasma Wand , Adnoidectomy ENT Surgical Instruments

Tonsillectomy RF Portable Plasma Wand , Adnoidectomy ENT Surgical Instruments

  • Tonsillectomy RF Portable Plasma Wand , Adnoidectomy ENT Surgical Instruments
  • Tonsillectomy RF Portable Plasma Wand , Adnoidectomy ENT Surgical Instruments
Tonsillectomy RF Portable Plasma Wand , Adnoidectomy ENT Surgical Instruments
Product Details:
Place of Origin: China
Brand Name: MECHAN
Certification: CE, ISO13485
Model Number: PLA401
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD piece
Packaging Details: carton
Payment Terms: T/T, L/C
Supply Ability: 10000 pieces per year
Contact Now
Detailed Product Description
Function: Cutting, Ablation, Coagulation, Hemostasis Advantage: Low Temperature, Quick Recovery
Technology: Cold Radiofreqency Plasma Application: Tonsillectomy / Adenoidectomy
Weight: 0.3kg Material: Platinum / Iridium
High Light:

ent surgical instruments

,

portable plasma wand

CE Certified Radio Frequency Bipolar Plasma Wand for Tonsillectomy / Adnoidectomy



Indications:

Tonsillectomy, adenoidecomy, UPPP and CAUP.



Parameters:

Degree 35°
Outer diameter 4.4mm
Length 120mm
Tip ¢0.3mm
Cable integrated Yes
Saline tube Yes



Features:

The PLA401 electrode has a length designed per clinical requirement, to make it easier to reach the postnaris hypertrophy during adenoidectomy. The probe shaft is flexible a little bit, to meet the clinical requirement. The probe tip is made of platinum and iridium that will minimize the probe clogging.



Our special offer:

1. Shaft has two types: normal, or smaller diameter

2. The material of tip is optional: normal, or special material



Plasma Surgery System PLA series products inspection items:

Biocompatibility: cytotoxicity EN ISO 10993-5:2009
Biocompatibility: sentitization, skin irritation test EN ISO 10993-10:2009
Test of packaging materials: vacuum leaks, pigment infiltration, agar attack, seal stripping / aging experiment EN ISO 11607-1:2009
Safety regulations Third Edition EN 60601-1:2006/AC:2012
Obtained the CE Certificate and Rohs certificate, Passed the EMC detection

IEC 62321:2008

IEC 60601-1-2:2007

Special standard EN 60601-2-2:2009



Plasma Surgery System Advantages:

1. In comparison with traditional surgical methods (like electrosurgery and laser), there is no electric current passes through human body, and temperature at the working surface is only 40 – 70 ℃, the thermal injury to adjacent tissue is less. When using the recommended energy levels, the ablation and coagulation depths are controlled at ≤50μm.

2. In coagulation, the low temperature plasma can control the temperature to 40 – 70 ℃ precisely, which not only ensures the shrinking of helical structure of collagen molecule but also maintains vitality of cells.

3. In comparison with traditional surgical methods (like electrosurgery and laser), plasma has less thermal energy, lighter thermal injury, shorter wound healing time, and slimmer chance of wound bleeding and scar.

4. In comparison with traditional surgical methods (like electrosurgery and laser), intraoperative pain of patient has decreased obviously, and the post-operation inflammatory rate decreased significantly. During surgery, surgeon can stop bleeding at the same time of resection without using any other tool for assistant.
