| Place of Origin: | CHINA |
| Brand Name: | MECHAN |
| Certification: | CE, ISO13485 |
| Model Number: | PLA-700 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | carton |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000 sets per year |
| Operating Mode: | Ablation And Coagulation | Energy: | Adjustable |
|---|---|---|---|
| Application: | Tonsillectomy, Adenoidectomy, Soft Palate | Advantage: | Minimally Invasive, Low Temperature, Quick Revocery |
| Color: | Gray White | Weight: | 7Kg |
| High Light: | rf ablation system,rf ablation devices |
||

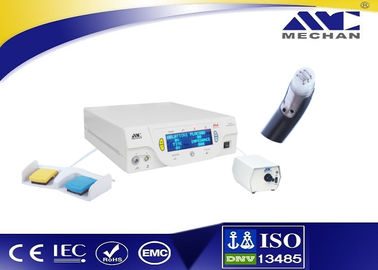

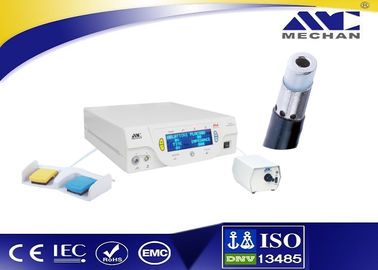

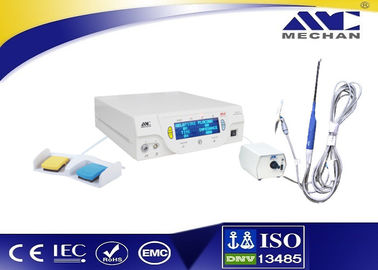

Low Temperature MIS Snoring Treatment System ENT Plasma Surgery System Coblator
Product Introduction
This PLA-700 ENT plasma surgery system are designed especially for ENT diseases treatment. it includes both ablation and coagulation modes, which result in different tissue effects. It is widely applying to Turbinate, Soft Palate, Uvula, CAUP, UPPP, Tonsillectomy, Adenoidectomy, Laryngeal tumor, Papilloma, Vocal Polyps etc.
Product Diagram
Working Principle
Technical Parameter
| Input Volts | 198-240V 50Hz |
| Output Power | Ablation or resection: ≤351W |
| Working Frequency | 100 KHz ± 10% |
| Dimension | 405*440*130mm (L*W*H) |
| Working Mode | Ablation and resection: level 1-10 |
| Weight | 7.0kg |
Product Advanatages
System Set Up
1). One tabletop generator device
2). One reusable and non-sterile power supply cable.
3). One reusable and non-sterile footswitch.
4). One reusable and non-sterile treatment handle which is for foot control.
5). Treatment probes.
| Description | Remark |
| Manufacturer Logo | MECHEN Brand. |
| Pads | Insulation and support on the surface. |
| Receptacle of Footswitch | Connects with Footswitch which determines ablation or coagulation mode. |
| Receptacle of Treatment Handle | Connects with the treatment accessories. |
| Power Switch | System start power button. “O” means power off; “I” means power on. |
| ABLATION mode Selector | Select ABLATION mode 1 or 2 Output waveform. |
| Indicator of Treatment Probe Connection | LED turns on green when the probe cable is connected and turns on red when it is not connected. |
| Indicator of Footswitch Connection | LED turns on green when the footswitch cable is connected and turns on Red when it is not connected. |
| ABLATION Power Setting Display | Shows the preset ABLATION output value in two digits. |
| Ablation Output Power Up/Down Button | The number displayed indicates the ablation nominal power, in watts, which will be delivered to the patient when the mode is activated. Only available for changing in ready mode. |
ENT System Features
1. Push-button operation, easy to use;
2. Real-time monitoring of the tissue impedance value during the surgery to tell the degree of surgery;
3. peeling cutting probe(electrode), cutting is more convenient and rapid;
4. more surgical electrodes to choose to meet more parts of tissue ablation, cutting, coagulation and hemostasis;
5. ablation cutting mode 1, ablation cutting mode 2, to meet the ablation cutting needs of different organizations.
