Soft Palate Uvula Wand Ent Surgical Instruments Ablation Adjustable From 1 To 10

Soft Palate Uvula Wand Ent Surgical Instruments Ablation Adjustable From 1 To 10

  • Soft Palate Uvula Wand Ent Surgical Instruments Ablation Adjustable From 1 To 10
  • Soft Palate Uvula Wand Ent Surgical Instruments Ablation Adjustable From 1 To 10
  • Soft Palate Uvula Wand Ent Surgical Instruments Ablation Adjustable From 1 To 10
Soft Palate Uvula Wand Ent Surgical Instruments Ablation Adjustable From 1 To 10
Product Details:
Place of Origin: CHINA
Brand Name: MECHAN
Certification: CE, ISO13485
Model Number: PLA304
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T, L/C
Supply Ability: 100000 sets per year
Contact Now
Detailed Product Description
Ablation: Adjustable From 1 To 10 Coagulation: Adjustable From 1 To 10
Application: Soft Palate And Uvula Treatment Advantage: Minimally Invasive, Low Temperature
Warranty: 2 Years After Sterilization Shaft Length: 108mm
Usage: Ablation, Cutting, Resection, Hemostasis Feature: Disposable
High Light:

ent surgical instruments

,

portable plasma wand

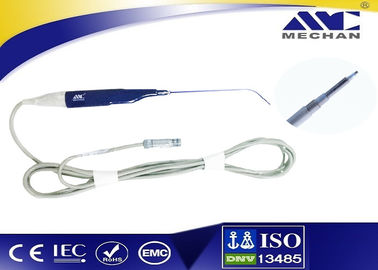

Soft Palate Uvula Wand ENT Probe For Snoring Treatment System



Product Introduction



PLA304 is design specially for Soft Palate and Uvula treatment. It is a tri-polar wand and connect with PLA-700 ENT plasma surgery system. It has the function of cutting, ablation, hemostasis and coagulation.



Product Tip Picture



Soft Palate Uvula Wand Ent Surgical Instruments Ablation Adjustable From 1 To 10 0



Product Character



Three-stage probe (front and back poles), the first and second poles punch, and the first, second and third poles ablate and stop bleeding. The blade is used for perforation, ablation, coagulation and hemostasis. When necessary, the tissue can be cut with tripolar action, which is in accordance with ergonomic principles. It is mainly used for soft palate uvula, tonsil perforation ablation and UP-PP surgery.



Product Advanatages



  • Safety: Compared with traditional surgical methods (such as: electric knife, laser), the current does not flow through the human body, the working surface temperature is only 40 ° C to 70 ° C, and the surrounding tissue is less thermally damaged. When used in the recommended energy range, the cutting and ablation depth is controlled to ≤50μm.
  • Minimally Invasive: Compared with traditional surgical methods (such as electric knife, laser), it has less heat, reduces tissue thermal damage, reduces wound healing time, reduces wound bleeding and scar formation
  • High Efficiency: Compared with traditional surgical methods (such as: electric knife, laser), the patient's pain during surgery is significantly reduced, and the incidence of postoperative inflammation is significantly reduced. During the surgery, the doctor stops bleeding while cutting, and does not need other hemostasis tools.



System Set Up



Description Remark
Manufacturer Logo MECHEN Brand.
Working Frequency 50Hz
Receptacle of Footswitch Connects with Footswitch which determines ablation or coagulation mode.
Receptacle of Treatment Handle Connects with the treatment accessories.
Power Switch System start power button. “O” means power off; “I” means power on.
ABLATION mode Selector Select ABLATION mode 1 or 2 Output waveform.
Indicator of Treatment Probe Connection LED turns on green when the probe cable is connected and turns on red when it is not connected.
Indicator of Footswitch Connection LED turns on green when the footswitch cable is connected and turns on Red when it is not connected.
ABLATION Power Setting Display

Shows the preset ABLATION output value in two digits.

“01” with Min. power output, and “10” with the highest output.

Ablation Output Power Up/Down Button The number displayed indicates the ablation nominal power, in watts, which will be delivered to the patient when the mode is activated. Only available for changing in ready mode.





Anesthesia



Local infiltration anesthesia



Cutting Principle



Relying on the mechanical kinetic energy of the plasma in the electric field, it hits the molecular bonds (40-70 ° C) of the target tissue to lyse and ablate. The thermal damage depth is less than 0.5mm, and the trauma to normal adjacent tissues is small.



Treatment Diseases



Soft Palate, Uvula and Tonsil Channeling, ablation, UPPP



Storage Condition



Electrodes shall be stored in environment of humidity less than 80%. no corrosive gas, well vented room. Taking complete protection to electrodes.

Soft Palate Uvula Wand Ent Surgical Instruments Ablation Adjustable From 1 To 10 1
