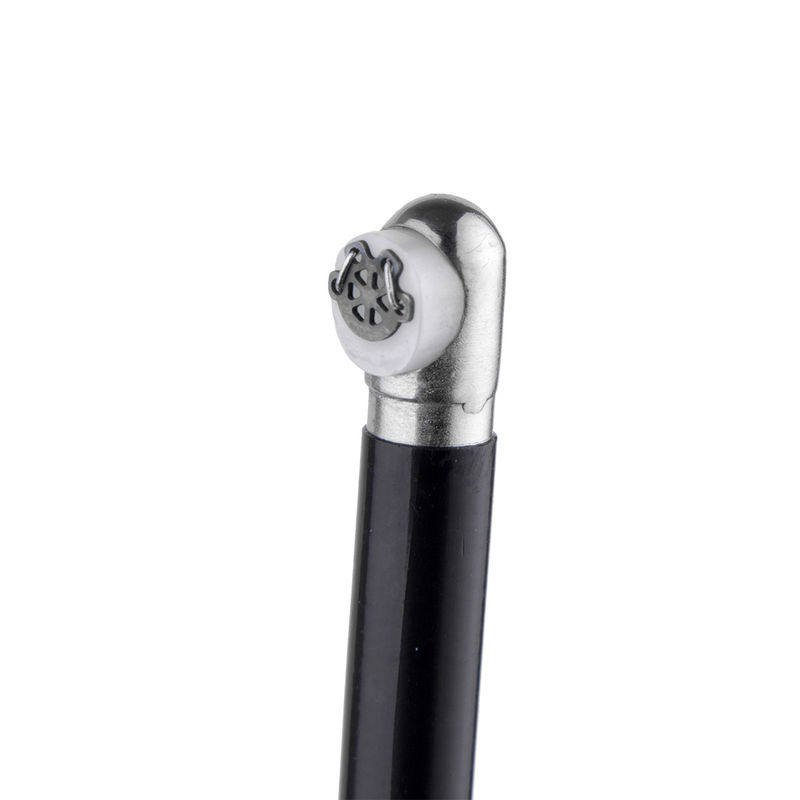

CE Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery

CE Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery

    • CE Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery
    • CE Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery
    • CE Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery
  • CE Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery

    Product Details:

    Place of Origin: CHINA
    Brand Name: MECHAN
    Certification: CE, ISO13485
    Model Number: PLA301

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: carton
    Payment Terms: T/T, L/C
    Supply Ability: 100000 sets per year
    Contact Now
    Detailed Product Description
    Operating Mode: Ablation & Coagulation Output Energy: Adjustable
    Application: Cervical And Lumbar Advantage: Minimally Invasive, Low Temperature
    Color: Gray White Weight: 7Kg
    High Light:

    low temperature probe

    ,

    spinal wand

    Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery





    Product Introduction



    MECHAN Orthoepedic Plasma Surgery System PLA-800 are designed to operate in urology field, it includes both ablation and coagulation modes, which result in different tissue effects. It is widely applying to spine and joints treatment.



    Product Diagram



    CE Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery 0



    Product Character



    • Establishes a plasma layer quickly and efficiently
    • Maintains a stable and aggressive plasma layer
    • Maximizes the size of the plasma layer



    Technical Parameter



    Input Volts

    198-240V 50Hz

    100-120V 60Hz

    Export device could convert automatically per customer requirements

    Output Power

    Ablation or resection: ≤351W

    Coagulation or hemostasis: ≤111W

    Working Frequency 100 KHz ± 10%
    Dimension 405*440*130mm (L*W*H)
    Working Mode

    Ablation and resection: level 1-10

    Coagulation: level 1-10

    Weight 7.0kg



    Product Advanatages



    • Safety: multi-polar design, change the traditional way that current flow through human body
    • Low Temperature: 40 to 70 centigrade during operation, decrease the thermal damage to around normal tissue
    • Precise cutting: the thin plasma layer make precise cutting becoming true, and it will not hurt the around normal tissue
    • Speedy cutting: cutting and coagulation at the same time, no need to change the probe frequently, saving operation time
    • Shorten recovery period: less hurt to human body, recovery faster



    System Set Up



    1). One tabletop generator device

    2). One reusable and non-sterile power supply cable.

    3). One reusable and non-sterile footswitch.

    4). One reusable and non-sterile treatment handle which is for foot control.

    5). Treatment probes.



    Description Remark
    Manufacturer Logo MECHEN Brand.
    Pads Insulation and support on the surface.
    Receptacle of Footswitch Connects with Footswitch which determines ablation or coagulation mode.
    Receptacle of Treatment Handle Connects with the treatment accessories.
    Power Switch System start power button. “O” means power off; “I” means power on.
    ABLATION mode Selector Select ABLATION mode 1 or 2 Output waveform.
    Indicator of Treatment Probe Connection LED turns on green when the probe cable is connected and turns on red when it is not connected.
    Indicator of Footswitch Connection LED turns on green when the footswitch cable is connected and turns on Red when it is not connected.
    ABLATION Power Setting Display

    Shows the preset ABLATION output value in two digits.

    “01” with Min. power output, and “10” with the highest output.

    Ablation Output Power Up/Down Button The number displayed indicates the ablation nominal power, in watts, which will be delivered to the patient when the mode is activated. Only available for changing in ready mode.



    Anesthesia


    Epidural anesthesia is usually used. You can also choose spinal anesthesia or general anesthesia.



    Storage Condition



    This device should be stored in a well-ventilated room without corrosive gas. The height above ground and the distance from wall should be above 30cm. Stack limit is 6 cases. Before being stored for a long time, it should be cleaned thoroughly for proper packing and storage. And it should also be taken out for power up every year, in order to avoid it from moisture, mildew or even damage. The suitable weather and environment condition is as below:

    1. Temperature: -40℃~+55℃;

    2. Relative humidity: ≤90%;

    3. Atmospheric pressure: 50kPa~106kPa

    CE Procise Plasma Wand Spine Probe Minimally Invasive Plasma Surgery 1
