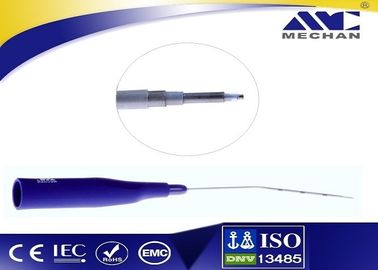

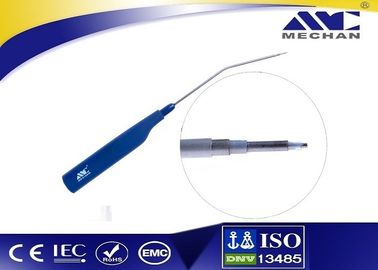

Plasma Coblator Turbinate Wand , Plasma Generator With Less Thermal Energy

Plasma Coblator Turbinate Wand , Plasma Generator With Less Thermal Energy

Plasma Coblator Turbinate Wand , Plasma Generator With Less Thermal Energy
Plasma Coblator Turbinate Wand , Plasma Generator With Less Thermal Energy
Plasma Coblator Turbinate Wand , Plasma Generator With Less Thermal Energy
Product Details:
Place of Origin: China
Brand Name: MECHAN
Certification: CE, ISO13485
Model Number: PLA303
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD piece
Packaging Details: carton
Payment Terms: T/T, L/C
Supply Ability: 10000 pieces per year
Contact Now
Detailed Product Description
Function: Ablation, Coagulation Weight: 0.12kg
Technology: Cold RFplasma Application: Turbinate
Cable Integrated: Yes Color: Blue
High Light:

rf plasma generator

,

rf ablation system

Sleeping Treatment Plasma Surgery System / Probe for Turbinate channeling



Plasma Surgery System Indications:

Turbinate channeling, hemostasis, abtaion.



Plasma Surgery System Parameters:

Degree 22°
Cable integrated Yes
length 110mm



Plasma Surgery System Features:

1. The PLA303 electrode uses minimally invasive ablation technology to gently dissolve submucosal tissue at the molecular level while preserving the mucosal surface during turbinate reduction procedures.

2. The device has a distal ablative electrode and a proximal thermal electrode that simultaneously removes and shrinks tissue.

3. It has three polars.

4. The 1st polar and the 2nd polar form a circuit for channeling while the 2nd and the 3rd polar form a circuit for ablation, hemostasis and coagulation.



Our commitment of Plasma Surgery System:

  1. Sufficient stock enable constant supplies.
  2. Ensure high-quality of each probe.
  3. On-time delivery.

Plasma Surgery System PLA series products inspection items:

Biocompatibility: cytotoxicity EN ISO 10993-5:2009
Biocompatibility: sentitization, skin irritation test EN ISO 10993-10:2009
Test of packaging materials: vacuum leaks, pigment infiltration, agar attack, seal stripping / aging experiment EN ISO 11607-1:2009
Safety regulations Third Edition EN 60601-1:2006/AC:2012
Obtained the CE Certificate and Rohs certificate, Passed the EMC detection

IEC 62321:2008

IEC 60601-1-2:2007

Special standard EN 60601-2-2:2009



Plasma Surgery System Advantages:

1. In comparison with traditional surgical methods (like electrosurgery and laser), there is no electric current passes through human body, and temperature at the working surface is only 40 – 70 ℃, the thermal injury to adjacent tissue is less. When using the recommended energy levels, the ablation and coagulation depths are controlled at ≤50μm.

2. In coagulation, the low temperature plasma can control the temperature to 40 – 70 ℃ precisely, which not only ensures the shrinking of helical structure of collagen molecule but also maintains vitality of cells.

3. In comparison with traditional surgical methods (like electrosurgery and laser), plasma has less thermal energy, lighter thermal injury, shorter wound healing time, and slimmer chance of wound bleeding and scar.

4. In comparison with traditional surgical methods (like electrosurgery and laser), intraoperative pain of patient has decreased obviously, and the post-operation inflammatory rate decreased significantly. During surgery, surgeon can stop bleeding at the same time of resection without using any other tool for assistant.
