Bipolar RF Plasma Surgery System / Electrode For Laryngeal Tumor Resection

Bipolar RF Plasma Surgery System / Electrode For Laryngeal Tumor Resection

    • Bipolar RF Plasma Surgery System / Electrode For Laryngeal Tumor Resection
    • Bipolar RF Plasma Surgery System / Electrode For Laryngeal Tumor Resection
  • Bipolar RF Plasma Surgery System / Electrode For Laryngeal Tumor Resection

    Product Details:

    Place of Origin: China
    Brand Name: MECHAN
    Certification: CE, ISO13485
    Model Number: PLA403

    Payment & Shipping Terms:

    Minimum Order Quantity: 5
    Price: USD piece
    Packaging Details: carton
    Payment Terms: T/T, L/C
    Supply Ability: 10000 pieces per year
    Contact Now
    Detailed Product Description
    Function: Hemostasis Weight: 0.49kg
    Technology: Cold R.F. Surgery Application: Laryngeal Tumor Resection
    Feature: Bipolar Color: Blue
    High Light:

    rf ablation system

    ,

    rf ablation devices

    Bipolar RF Plasma Surgery System / Electrode for Laryngeal Tumor Resection



    Plasma Surgery System Indications:

    Laryngeal tumor resection, Papilloma resection, suction, ablation



    Plasma Surgery System Parameters:

    Degree 33°
    Cable integrated cable
    Saline tube Yes
    Article number EB403M07-1
    Length 200mm



    Plasma Surgery System Features:

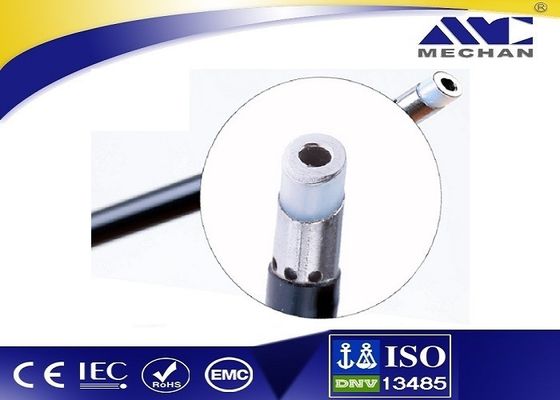

    1. The PLA403 electrode has superfine and overlength probe design, which makes it possible to reach deeper surgery locations.

    2. Design of the separate passages for liquids irrigation and suction makes it possible to effectively avoid the probe blocked.



    Our special offer for Plasma Surgery System:

    1. Shaft length: optional.

    2. The material of tip is optional: normal, or special material.

    3. The probe is special compatible with Mechan generator PLA700. And connector is optional.



    Our commitment for Plasma Surgery System:

    1. Sufficient stock enable constant supplies.

    2. Ensure high-quality of each probe.

    3. On-time delivery.

    Plasma Surgery System PLA series products inspection items:

    Biocompatibility: cytotoxicity EN ISO 10993-5:2009
    Biocompatibility: sentitization, skin irritation test EN ISO 10993-10:2009
    Test of packaging materials: vacuum leaks, pigment infiltration, agar attack, seal stripping / aging experiment EN ISO 11607-1:2009
    Safety regulations Third Edition EN 60601-1:2006/AC:2012
    Obtained the CE Certificate and Rohs certificate, Passed the EMC detection

    IEC 62321:2008

    IEC 60601-1-2:2007

    Special standard EN 60601-2-2:2009



    Plasma Surgery System Advantages:

    1. In comparison with traditional surgical methods (like electrosurgery and laser), there is no electric current passes through human body, and temperature at the working surface is only 40 – 70 ℃, the thermal injury to adjacent tissue is less. When using the recommended energy levels, the ablation and coagulation depths are controlled at ≤50μm.

    2. In coagulation, the low temperature plasma can control the temperature to 40 – 70 ℃ precisely, which not only ensures the shrinking of helical structure of collagen molecule but also maintains vitality of cells.

    3. In comparison with traditional surgical methods (like electrosurgery and laser), plasma has less thermal energy, lighter thermal injury, shorter wound healing time, and slimmer chance of wound bleeding and scar.

    4. In comparison with traditional surgical methods (like electrosurgery and laser), intraoperative pain of patient has decreased obviously, and the post-operation inflammatory rate decreased significantly. During surgery, surgeon can stop bleeding at the same time of resection without using any other tool for assistant.

    Bipolar RF Plasma Surgery System / Electrode For Laryngeal Tumor Resection 0
