|Place of Origin:||China|
|Minimum Order Quantity:||5|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10000 pieces per year|
|Technology:||R-F Plasma Recection||Application:||Nasal Cavity Surgery|
rf plasma generator,
rf ablation system

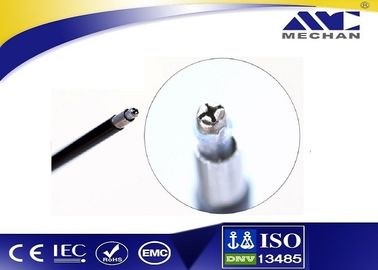

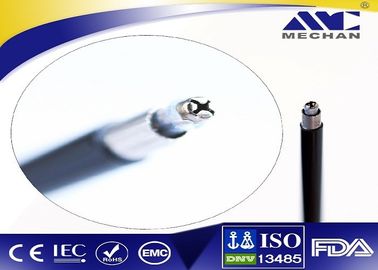

ENT Plasma Radiofrequency Ablation Electrode / Probe for Nasal Surgery
Plasma Surgery System Indications:
Tonsillectomy, Adnoidectomy, UPPP, CAUP, and the surgery of lesion tissues at narrow spaces like nasal cavity.
Plasma Surgery System Parameters:
Our special offer for Plasma Surgery System:
1. Shaft length: optional.
2. The material of tip is optional: normal, or special material.
3. The probe is special compatible with Mechan generator PLA700. And connector is optional.
Our commitment for Plasma Surgery System:
Sufficient stock enable constant supplies.
Ensure high-quality of each probe.
Plasma Surgery System Features:
1. The PLA404 electrode has a smaller diameter than PLA401 and PLA402, but has the same usage and purpose.
2. Smaller shaft profile and minimized occurrence of probe tip clogging.
3. The probe shaft is flexible a little bit to meet the clinical requirements.
Plasma Surgery System PLA series products inspection items:
|Biocompatibility: cytotoxicity||EN ISO 10993-5:2009|
|Biocompatibility: sentitization, skin irritation test||EN ISO 10993-10:2009|
|Test of packaging materials: vacuum leaks, pigment infiltration, agar attack, seal stripping / aging experiment||EN ISO 11607-1:2009|
|Safety regulations Third Edition||EN 60601-1:2006/AC:2012|
|Obtained the CE Certificate and Rohs certificate, Passed the EMC detection||
|Special standard||EN 60601-2-2:2009|
Plasma Surgery System Advantages:
1. In comparison with traditional surgical methods (like electrosurgery and laser), there is no electric current passes through human body, and temperature at the working surface is only 40 – 70 ℃, the thermal injury to adjacent tissue is less. When using the recommended energy levels, the ablation and coagulation depths are controlled at ≤50μm.
2. In coagulation, the low temperature plasma can control the temperature to 40 – 70 ℃ precisely, which not only ensures the shrinking of helical structure of collagen molecule but also maintains vitality of cells.
3. In comparison with traditional surgical methods (like electrosurgery and laser), plasma has less thermal energy, lighter thermal injury, shorter wound healing time, and slimmer chance of wound bleeding and scar.
4. In comparison with traditional surgical methods (like electrosurgery and laser), intraoperative pain of patient has decreased obviously, and the post-operation inflammatory rate decreased significantly. During surgery, surgeon can stop bleeding at the same time of resection without using any other tool for assistant.
