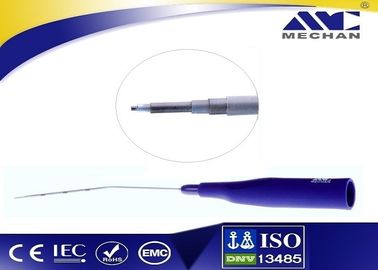

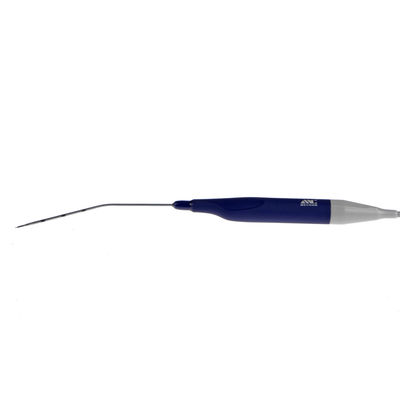

Plasma Ablation Turbinate Reduction ENT Probe Minimally Invasive Surgical

Plasma Ablation Turbinate Reduction ENT Probe Minimally Invasive Surgical

  • Plasma Ablation Turbinate Reduction ENT Probe Minimally Invasive Surgical
  • Plasma Ablation Turbinate Reduction ENT Probe Minimally Invasive Surgical
Plasma Ablation Turbinate Reduction ENT Probe Minimally Invasive Surgical
Product Details:
Place of Origin: China
Brand Name: MECHAN
Certification: CE, ISO13485
Model Number: PLA303
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD piece
Packaging Details: carton
Payment Terms: T/T, L/C
Supply Ability: 10000 pieces per year
Contact Now
Detailed Product Description
Mode: Cutting, Ablation, Coagulation, Hemostasis Specification: Bipolar
Technology: Cold Radiofreqency Plasma Application: Turbinate Reduction
Feature: Low Temperature Minimally Invasive Color: Blue
High Light:

coblator turbinate wand

,

portable plasma wand

Plasma Ablation ENT Probe Minimally-invasive Surgical for Turbinate Reduction



Indications:

Turbinate reduction/ablation



Parameters:

Tip shape Needle-like
Outer diameter 2mm
Degree 22°
Length 110mm
Plug pin 7
Cable integrated Yes



Features:

The PLA303 electrode uses minimally invasive ablation technology to gently dissolve submucosal tissue at the molecular level while preserving the mucosal surface during turbinate reduction procedures. The device has a distal ablative electrode and a proximal thermal electrode that simultaneously removes and shrinks tissue. The 1st polar and the 2nd polar form a circuit for channeling while the 2nd and the 3rd polar form a circuit for ablation, hemostasis and coagulation.



Plasma Surgery System PLA series products inspection items:

Biocompatibility: cytotoxicity EN ISO 10993-5:2009
Biocompatibility: sentitization, skin irritation test EN ISO 10993-10:2009
Test of packaging materials: vacuum leaks, pigment infiltration, agar attack, seal stripping / aging experiment EN ISO 11607-1:2009
Safety regulations Third Edition EN 60601-1:2006/AC:2012
Obtained the CE Certificate and Rohs certificate, Passed the EMC detection

IEC 62321:2008

IEC 60601-1-2:2007

Special standard EN 60601-2-2:2009



Plasma Surgery System Advantages:

1. In comparison with traditional surgical methods (like electrosurgery and laser), there is no electric current passes through human body, and temperature at the working surface is only 40 – 70 ℃, the thermal injury to adjacent tissue is less. When using the recommended energy levels, the ablation and coagulation depths are controlled at ≤50μm.

2. In coagulation, the low temperature plasma can control the temperature to 40 – 70 ℃ precisely, which not only ensures the shrinking of helical structure of collagen molecule but also maintains vitality of cells.

3. In comparison with traditional surgical methods (like electrosurgery and laser), plasma has less thermal energy, lighter thermal injury, shorter wound healing time, and slimmer chance of wound bleeding and scar.

4. In comparison with traditional surgical methods (like electrosurgery and laser), intraoperative pain of patient has decreased obviously, and the post-operation inflammatory rate decreased significantly. During surgery, surgeon can stop bleeding at the same time of resection without using any other tool for assistant.
