Minimally Invasive Tonsillectomy ENT Probe Non Thermal Plasma Treatment

Minimally Invasive Tonsillectomy ENT Probe Non Thermal Plasma Treatment

  • Minimally Invasive Tonsillectomy ENT Probe Non Thermal Plasma Treatment
  • Minimally Invasive Tonsillectomy ENT Probe Non Thermal Plasma Treatment
Minimally Invasive Tonsillectomy ENT Probe Non Thermal Plasma Treatment
Product Details:
Place of Origin: China
Brand Name: MECHAN
Certification: CE, ISO13485
Model Number: PLA402
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD piece
Packaging Details: carton
Payment Terms: T/T, L/C
Supply Ability: 10000 pieces per year
Contact Now
Detailed Product Description
Function: Surgical Dissection, Ablation, Coagulation Application: Tonsillectomy / Adenoidectomy
Benefit: Minimally Invasive OEM: Yes
Weight: 0.3kg Colour: Blue
High Light:

ent surgical instruments

,

portable plasma wand

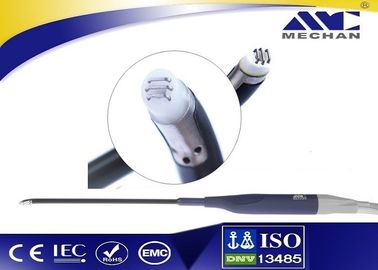

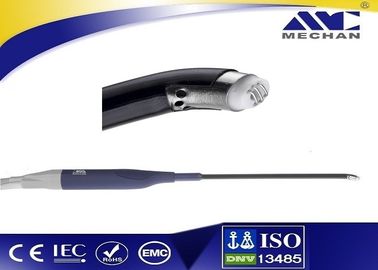

Non-thermal Plasma Treatment Wand Minimally-invasive for Tonsillectomy



Indications:

Tonsillectomy, adnoidectomy, UPPP, CAUP, and the surgery of lesion tissues at narrow spaces like nasal cavity.



Parameters:

Degree 35°
Length 120mm
Outer diameter 4.4mm
Saline tube Yes
Plug pin 7
Cable integrated Yes



Features:

The PLA402 electrode has a small diameter, which is suitable for pediatric surgery. Design of the separate passages for liquids irrigation and suction makes it possible to effectively avoid the probe blocked. The prode electrode surface is coated with special metal. Probe life is extended.



Plasma Surgery System PLA series products inspection items:

Biocompatibility: cytotoxicity EN ISO 10993-5:2009
Biocompatibility: sentitization, skin irritation test EN ISO 10993-10:2009
Test of packaging materials: vacuum leaks, pigment infiltration, agar attack, seal stripping / aging experiment EN ISO 11607-1:2009
Safety regulations Third Edition EN 60601-1:2006/AC:2012
Obtained the CE Certificate and Rohs certificate, Passed the EMC detection

IEC 62321:2008

IEC 60601-1-2:2007

Special standard EN 60601-2-2:2009



Plasma Surgery System Advantages:

1. In comparison with traditional surgical methods (like electrosurgery and laser), there is no electric current passes through human body, and temperature at the working surface is only 40 – 70 ℃, the thermal injury to adjacent tissue is less. When using the recommended energy levels, the ablation and coagulation depths are controlled at ≤50μm.

2. In coagulation, the low temperature plasma can control the temperature to 40 – 70 ℃ precisely, which not only ensures the shrinking of helical structure of collagen molecule but also maintains vitality of cells.

3. In comparison with traditional surgical methods (like electrosurgery and laser), plasma has less thermal energy, lighter thermal injury, shorter wound healing time, and slimmer chance of wound bleeding and scar.

4. In comparison with traditional surgical methods (like electrosurgery and laser), intraoperative pain of patient has decreased obviously, and the post-operation inflammatory rate decreased significantly. During surgery, surgeon can stop bleeding at the same time of resection without using any other tool for assistant.
