Arthroscopic Plasma Radio Frequency Generator Fast Recovery For Shoulder Surgery
Product Details:
Place of Origin: China
Brand Name: MECHAN
Certification: CE, ISO13485
Model Number: PLA-800
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD set
Packaging Details: carton
Payment Terms: T/T, L/C
Supply Ability: 10000 set per year
Contact Now
Detailed Product Description
Function: Ablation Advantage: Short Inpatient Time
Length: 410.1mm Application: Spine And Joint Surgery
Certificate: CE, ISO13485, GMP, ISO9001 Construction: Grey And Touch Screen
High Light:

radiofrequency generator manufacturer

,

radio frequency generator

Arthroscopic Plasma Radio Frequency Generator Fast Recovery For Shoulder Surgery



Radio Frequency Plasma Generator Parameters:

Input Volt

192-243V 50Hz

101-123V 60Hz

Export device could convert automatically per customer requirements

Output Power

Ablation and resection: ≤355W

Coagulation and hemostasis: ≤100W

Working Frequency 101.1 KHz ± 10%
Dimension 412.5*452.5*142.5mm (L*W*H)
Working Mode

Ablation and resection: level 1-10

Coagulation: level 1-10

Weight 7.61kg



Radio Frequency Plasma Generator Application:

1. Fibrinogen aggregation hemostasis (hemostasis point is white and no smoke, smell or carbonization), local anaesthesia, outpatient surgery.

2. Puncture under guidance of ultrasound machine.

3. Combination of spine and joint surgery.



Radio Frequency Plasma Generator Advantages:

  1. More functions can be achieved with only one set of generator.
  2. Low temeprature surgery, less damage to tissues.
  3. Replace partial functions of the power system and shorten surgery time.
  4. Less pain, less bleeding.

Radio Frequency Plasma Generator description:

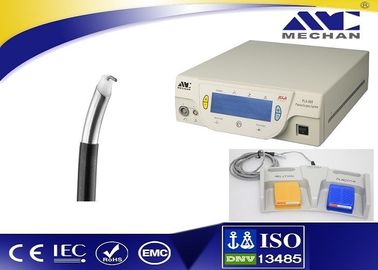

Mechan Orthopedic Plasma Surgery System contains a plasma generator and a pair of foot pedal.



Radio Frequency Plasma Generator Features:

1. Bipolar or multi-polar cutting, low temperature ablation, resection, hemostasis and coagulation, minimally- invasive, safe and reliable way.



2. Different types of probes available for options. The length, diameter, radian, energy level of probes are designed as per the requirements of different locations and diseases.


3. Multi-function probe designed for ablation, coagulation, hemostasis and resection. All functions are achieved at the same handle and in same output socket, thus no need to change probes frequently during surgery.
