Place of Origin: | CHINA |
Brand Name: | MECHAN |
Certification: | CE, ISO13485 |
Model Number: | PLA404 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | carton |
Payment Terms: | T/T, L/C |
Supply Ability: | 100000 sets per year |
Ablation: | Adjustable From 1 To 10 | Coagulation: | Adjustable From 1 To 10 |
---|---|---|---|
Application: | Tonsillectomy, Adenoidectomy, CAUP, UPPP | Advantage: | MIS And Low Temperature |
Warranty: | 24 Months After Sterilization | Shaft Length: | 120mm |
Usage: | Ablation, Cutting, Resection, Hemostasis | Feature: | Disposable |
Probe Angle: | 35° | ||
High Light: | ent surgical instruments,portable plasma wand |

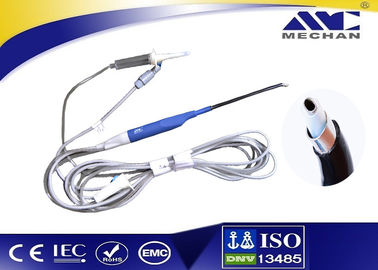

Minimally Invasive ENT Probe For Snoring Treatment Coblator Adenoidectomy
Product Introduction
PLA404 is design specially for Tonsillectomy, Adenoidectomy, CAUP, UPPP, and nasal cavity lesion tissue treatment. Tonsillary and adenoidectomy, UPPP, CAUP, and nasal cavity lesion treatment. The method and use are the same as PLA401 and PLA402. Its main feature is that the tip diameter is thinner and it will not be blocked during treatment. It has the function of cutting, ablation, hemostasis and coagulation. It is connect with PLA-700 ENT plasma surgery system to perform the operation.
Product Application
Product Advanatages
System Set Up
Description | Remark |
Manufacturer Logo | MECHEN Brand. |
Working Frequency | 50Hz |
Receptacle of Footswitch | Connects with Footswitch which determines ablation or coagulation mode. |
Receptacle of Treatment Handle | Connects with the treatment accessories. |
Power Switch | System start power button. “O” means power off; “I” means power on. |
ABLATION mode Selector | Select ABLATION mode 1 or 2 Output waveform. |
Indicator of Treatment Probe Connection | LED turns on green when the probe cable is connected and turns on red when it is not connected. |
Indicator of Footswitch Connection | LED turns on green when the footswitch cable is connected and turns on Red when it is not connected. |
ABLATION Power Setting Display |
Shows the preset ABLATION output value in two digits. “01” with Min. power output, and “10” with the highest output. |
Ablation Output Power Up/Down Button | The number displayed indicates the ablation nominal power, in watts, which will be delivered to the patient when the mode is activated. Only available for changing in ready mode. |
Anesthesia
General anesthesia
Cutting Principle
Relying on the mechanical kinetic energy of the plasma in the electric field, it hits the molecular bonds (40-70 ° C) of the target tissue to lyse and ablate. The thermal damage depth is less than 0.5mm, and the trauma to normal adjacent tissues is small.
Treatment Diseases
Tonsillectomy, Adenoidectomy, CAUP, UPPP and the soft tissue at narrow spaces like nasal cavity.
Storage Condition
Electrodes shall be stored in environment of humidity less than 80%. no corrosive gas, well vented room. Taking complete protection to electrodes.
