NANOS Mechan    01 The principle of plasma surgery

The plasma surgery system generates plasma with 100kHz radiofrequency electrical energy at the tip of the electrode in an excitation medium (saline solution), utilizing the kinetic energy of a large number of fast-moving charged particles within the plasma to disrupt the molecular bonding of target tissue cells. This rapidly breaks down biological macromolecules such as proteins into molecular fragments and atoms, thereby enabling real-time, highly efficient tissue resection, ablation, coagulation and hemostasis at low temperatures (40-70°C).

NANOS Mechan    02 Plasma Surgery-Advanced Surgical

1> Reduced thermal damage:Working temperature is controlled at 50℃.

      Plasma Avg.temp 40-50℃                      Electrosurgery Avg.temp 250-350℃

                     Plasma Surgery System VS Electrosurgery System

2> Minimally-invasive,more safety and less blood loss.

3> Reduced tissue thermal damage with low temperature.

4> Reduced patient pain with fast recovery.Shorten hospital stay time.

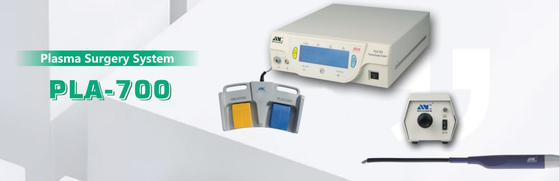

NANOS Mechan      03 Functions and clinical operation renderings

* Provides two ablation modes and one coagulation mode.

* Provides automatic identification of probe,footswitch

* connection status,and supports power output settings withdefault level according to the different probe design.

* Hardware protection circuit design -Stop energy output when detecting blade met short circuit.

* The online impedance monitoring detection technologyreducing the risk of thermal damage.

  Turbinate channeling/ablation               Tonsillectomy                                       Adenoidectomy

NANOS Mechan      04 Available disposable plasma probe models

                                                                                           NO. 1

* Indications:Tonsillectomy,Adenoidectomy,Uvulopalatopharyngoplasty(UPPP)
	■ Triple-wire electrodes for precise soft tissue resection and ablation. ■Build-in saline drip and suction functions for quick and easysurgery preparation. ■ The shaft supports bending.
■Compact blade for improved surgery visual field and adaptability todiverse anatomy ■Unique saline drip feature for full-covered saline delivery to theprobe. ■The shaft supports bending.

                                                                                                 NO. 2

Indications: Laryngeal Tumor and Lesion Resection
	■Superfine and overlength shaft design fits hypopharynx and glottissurgery. ■ Crescent-shaped saline vent creates smooth irrigation and saline fullcovered blade.

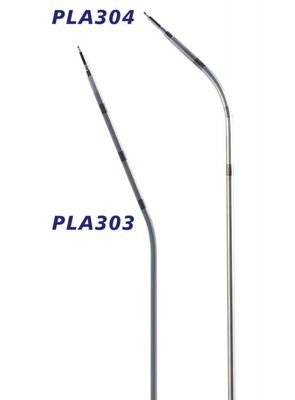

                                                                                                        NO. 3

Indications: Turbinate channeling/ablation
■Submucosal puncture and ablation forturbinate reduction,keeping mucosasurface intact. ■ Markers on the shaft provides surgeons measurement of the ablation length.

                                                                                                                 NO. 4

Indications: Goitit imor and Lesioi Resettion
	■ Single-wire electrode is capable of precise lesion resection.   ■ Wide saline vent keeps the blade fully covered by saline duringoperation.   ■ Lengthened shaft can reach to 20 cm deep in mouth till the subglotticarea.   ■ Slender shaft and blade are compatible to microscopy surgicalinstrument.

                                                                                                           NO.5

Indications: Endescepit Ear Surgery in Irrigation Mode (e.g.Tympanit Membrane Repait Miadle Ear Cholesteatoma Surgery TympanoplastyTranscanal-tubular Acoustic Neuroma resection) Endescepit Ear Surgery in Irrigation Mode (e.g.Tympanit Membrane RepaitMiadle Ear Cholesteatoma Surgery TympanoplastyTranscanal-tubular Acoustic Neuroma resection)
■Delicate filament blade with flexible shaft.   ■The probe can arrest bleeding while tissue resection contributing toclean surgical view.   ■Super light-weigh probe lessening surgeon wrist fatigue.   ■This probe has no saline vent and needs extra saline irrigationinstrument.

NANOS Mechan     05 Detailed parameters

NANOS Mechan     06 Certifications

The company has passed ROHS certification, EMC testing, CMD system audit, Korea KGMP system audit. And we also have certifications such as CE, ISO13485 ,Class III medical device product registration certificate (issued by the State Food and Drug Administration) etc.

NANOS  Mechan     07 FAQ

Q1. How about your delivery time? A: Generally, it will take 3 to 5 work days for sample and 1 to 2 weeks for regular order after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q2. What is your sample policy?
A: We can supply the sample if we have ready products in stock, but the customers have to pay the sample cost and the courier cost.

Q3. Are you a manufacturer?
A: Yes, we are 100% manufacturer and we have 100% test before delivery.

Looking forward to seeing you at MEDICA~
