Bipolar RF Nucleoplasty Probe For Spinal Decompression

Bipolar RF Nucleoplasty Probe For Spinal Decompression

  • Bipolar RF Nucleoplasty Probe For Spinal Decompression
  • Bipolar RF Nucleoplasty Probe For Spinal Decompression
  • Bipolar RF Nucleoplasty Probe For Spinal Decompression
Bipolar RF Nucleoplasty Probe For Spinal Decompression
Product Details:
Place of Origin: CHINA
Brand Name: MECHAN
Certification: CE, ISO 13485
Model Number: PLA203
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C
Supply Ability: 100000 pieces per year
Contact Now
Detailed Product Description
Feature: Minimally-invasive Function: Cutting, Coagulation,hemostasis
Technology: Cold RF Plasma Color: Blue
Properties: Orthopedic Surgical Instruments After-sale Service: Online Technical Support
Application: Spine Treatment
High Light:

Bipolar RF Nucleoplasty Probe

,

Spinal Decompression Bipolar RF Nucleoplasty Probe

,

CE Bipolar RF Nucleoplasty Probe

         Bipolar RF Nucleoplasty Probe for Spinal Decompression





01Technical Parameters



Model No. PLA203
Probe Shape  Hemispherical probe 0-30°
Probe OD 2.3mm
Guide pin OD 3.7mm
Working length 360mm
Usage

Ablation,hemostasis with TESSYS

Art. No.                                           GK203M18-1





02 Applications



1> Low-temperature working : Resection at 70° ; Ablation at 50°.
2> Fibrinogen aggregation hemostasis( hemostasis point is white & nonsmoke and it will not carbonize the surrouding tissue)
3> Local anaesthesia, outpatient surgery
4> Realize ablation, hemostasis, formation and resection with TESSYS.
5> Low-temperature minimally invasive surgery offers maximum protection to fibrous rings.
6> According to post-surgery follow up, the spine stability is excellent and the recurrence rate of slipped disc is low.


03 Advantages



* Multi-point ablation from variable angles is achievable through the percutaneous puncture probe.
* Resection function is achievable through the TESSYS probe.
* Replace partial functions of the power system and shorten surgery time.





04 Features



While most radiofrequency-based surgical products, such as lasers and electrosurgical devices, use imprecise heat-driven processes to remove or cut tissue, our Mechan Plasma Technology creates a controlled, stable plasma field to precisely remove tissue at a low relative temperature, resulting in minimal thermal damage to surrounding soft tissues.



1) Lower post-op inflammatory response



Bipolar RF Nucleoplasty Probe For Spinal Decompression 0



2) Lighter pain feeling



Bipolar RF Nucleoplasty Probe For Spinal Decompression 1



3) Less thermal damage to the tissue surrounding the surgical area



By combining bipolar energy with continuous saline delivery, our Mechan technology devices are able to create a stable plasma layer of only 130μm thick around the active electrode. This allows for the precise excision of tissue while minimizing the heat that is transferred to the patient and ensures a controlled amount of plasma throughout the entire procedure.



Bipolar RF Nucleoplasty Probe For Spinal Decompression 2

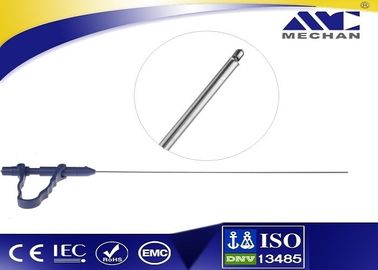

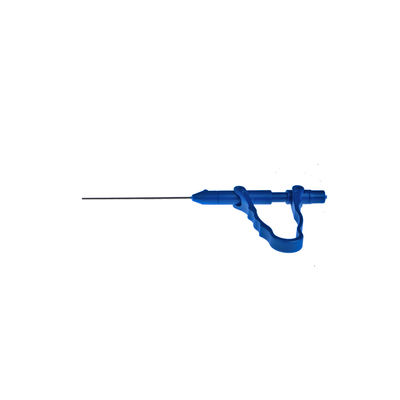

05 Product Detail Picture



Bipolar RF Nucleoplasty Probe For Spinal Decompression 3





06 Packaging & delivery details





Bipolar RF Nucleoplasty Probe For Spinal Decompression 4



Packing:

Selling Units: Single item
Single package size: 44cm*17cm*2cm
Single gross weight: 0.2 kg


Package Type: by carton



Delivery:Air transportation is suggested





07 Certifications



Mechan is the first plasma surgery system manufacturer getting CE approved in 2014,and also got certificates of FSC,ISO13485,RoHS,etc.



Bipolar RF Nucleoplasty Probe For Spinal Decompression 5

Bipolar RF Nucleoplasty Probe For Spinal Decompression 6



08 Company profile



Chengdu Mechan Electronic Technology Co., Ltd was established in 2002, the leader in Chinese Plasma Surgery System Industry. It is a high-tech enterprise combined production with sales, also a pioneer in the production of plasma medical products, including low temperature urology plasma surgery system, low temperature ENT plasma surgery system, low temperature orthopedics plasma surgery system, etc.


Bipolar RF Nucleoplasty Probe For Spinal Decompression 7



09 FAQ&contact info

Q1. How about your delivery time?
A: Generally, it will take 1 to 4 weeks after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q2. What is your sample policy?
A: We can supply the sample if we have ready products in stock, but the customers have to pay the sample cost and the courier cost.

Q3. Are you a manufacturer?
A: Yes, we are 100% manufacturer.

Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
