|Place of Origin:||CHINA|
|Certification:||CE, ISO 13485|
|Model Number:||Orthopedics Series|
|Minimum Order Quantity:||1 Piece|
|Delivery Time:||5-8 work days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100000 pieces per year|
|Feature:||Minimally-invasive||Function:||Resection, Coagulation,hemostasis, Cutting|
|Technology:||Cold RF Plasma||Color:||Blue|
|Properties:||Orthopedic Surgical Instruments||After-sale Service:||Online &offline Training, Return And Replacement|
|Warranty::||5 Years For Console, 2 Years For Electrode||Properties::||Trauma Repairment Surgery Instruments|

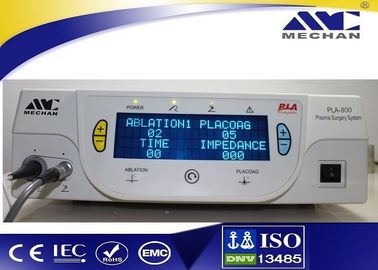

Plasma Electrode Coblator System,
Spine Endoscopy Instrument Set,
Minimally Invasive Endoscopy Instrument Set
Mechan Bipolar Electrosurgical Unit Plasma Electrode Coblator System Spine Endoscopy Instrument Set
|Model No.||orthopedics series|
|Working length||76mm -360mm|
Spine surgeries under endoscope
|Working Temperature||40-70 Celsius|
|Modes Of Operation||ABLATION,PLACOAG|
|Conductive Agent||500-1000ml Normal Saline|
1. A minimally invasive, low thermal technology for effective dissection and removal of tissue, COBLATION technology is ideal for such Orthopedics procedures as complete or partial resection of meniscus, meniscus finishing and repairing, ligament release or tightening, pathological synovial removal, intra-articular residue clearance, agedness osteoarthritis treatment, wound restoring, bone infection treatment, etc.
2. Over millions of procedures have been successfully performed using our COBLATION Plasma Technology since the introduction of 2022 .
3. While most radiofrequency-based surgical products, such as lasers and electrosurgical devices, use imprecise heat-driven processes to remove or cut tissue, our COBLATION Plasma Technology creates a controlled, stable plasma field to precisely remove tissue at a low relative temperature, resulting in minimal thermal damage to surrounding soft tissues.
4. Plasma is formed by creating a high density energy field within an electrical conductive fluid, such as saline. A key to sustaining a stable plasma layer is our patented saline delivery system. Without integrated saline, plasma must be formed using the body’s interstitial fluid, which dissipates quickly once energized.Our COBLATION Plasma Technology uses bipolar energy to help control the amount of energy and heat delivered to the surrounding tissue.

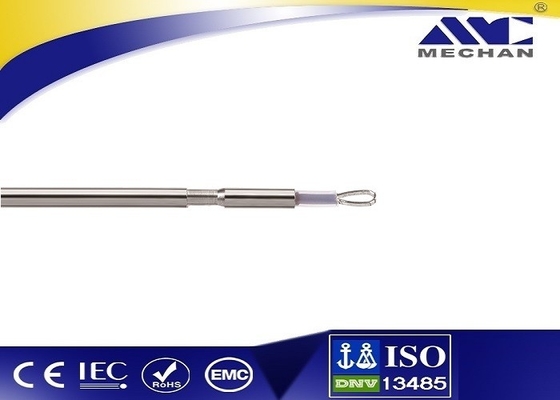

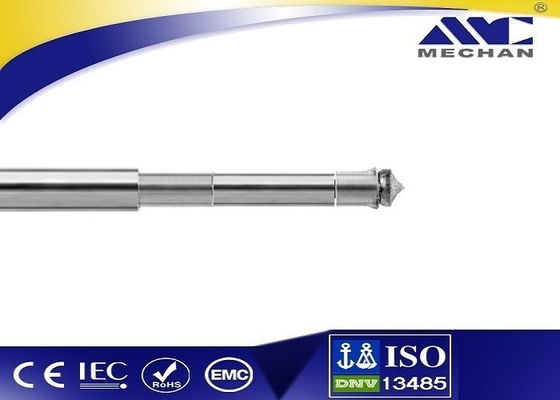

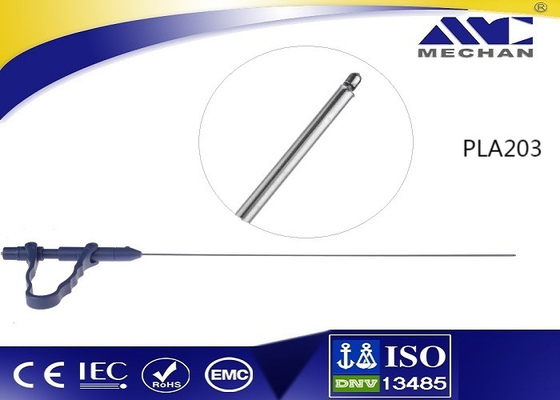

Product Detail Picture
it's Widely used for knee, shoulder,hip, wrist, ankle and elbow joints. Resection, lysis, plasty, debridement and ablation can be applied on meniscus, soft tissue, ligament, synovial membrane, tendon glenoid labrum, etc. For example, complete or partial resection of meniscus,meniscus finishing and repairing, ligament release or tightening,pathological synovial removal, intra-articular educts clearance, agedness osteoarthritis treatment, wound restoring,bone infection treatment etc.
Packaging & Delivery
Selling Units: Single item
Single package size: 44X17X2 cm
Single gross weight: 0.200 kg
Package Type: by carton
Delivery: by air or by sea
Necessary Certificates such as CE,ISO13485, etc
