Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking

Product Details:

Place of Origin:	CHINA
Brand Name:	MECHAN
Certification:	CE, ISO 13485
Model Number:	PLA403

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD
Packaging Details:	Carton
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Feature:	Minimally-invasive	Function:	Cutting, Coagulation,ablation, Hemostasis
Technology:	Cold Plasma	Color:	Blue
Properties:	Otolaryngology Surgical Instruments	After-sale Service:	Online Technical Support

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking

01Technical Parameters

Model	PLA403
Working length	200mm
Outer diameter	4.0mm
Tip degree	30°
Usage	Laryngeal tumor resection and Papilloma resection
Working Temperature	40-70 Celsius
Modes Of Operation	ABLATION(for cutting and ablation),PLACOAG(for hemostasis and coagulation)
Conductive Agent	500-1000ml Normal Saline

02 Applications

It' featured with minimal invasive, low working temperature(<70°)and less bleeding and it can treat Laryngeal tumor resection and Papilloma resection etc. The surgery video image of it is attached for your reference.

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 0

03 What is the meaning of plasma surgery?

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 1

By using pure plasma energy, no electricity passes through any patient tissue. Pure plasma energy differs from conventional, argon-enhanced, or fluid-enhanced electrosurgery in which an electric current flows through the tissue to create the desired effect. • Current applied to tissue can generate arcing and sparks.

The fundamental principle of plasma therapy involves the activation of NaCl and other electrolytes into a low-temperature plasma by utilizing a stable electric field that operates at an ultra-low frequency of 100kHz. This results in the formation of a thin plasma layer located approximately 100μm in front of the electrode.
Typically, when a NaCl molecule is excited under a stable electric field of 100kHz, it acquires a kinetic energy of 8 electron volts. The energy required to break a peptide bond is 4 electron volts. Hence, the targeted tissue cells are disintegrated at the molecular level. Proteins and other tissue components undergo lysis and transform into low molecular weight gases like H2, O2, CO2, N2, and methane. This process yields cutting and ablation effects while maintaining relatively low temperatures ranging from 40-70°C. Due to its ability to operate within this temperature range, it is commonly referred to as temperature-controlled radiofrequency (TCRF) therapy.

04 Product Detail Picture

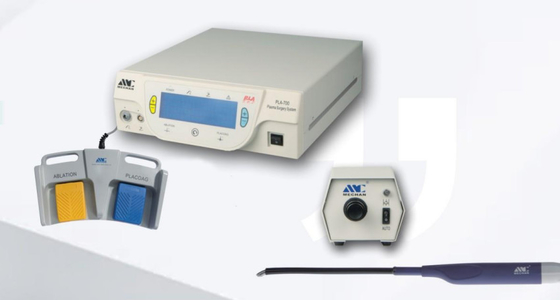

Probe overall picture

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 2

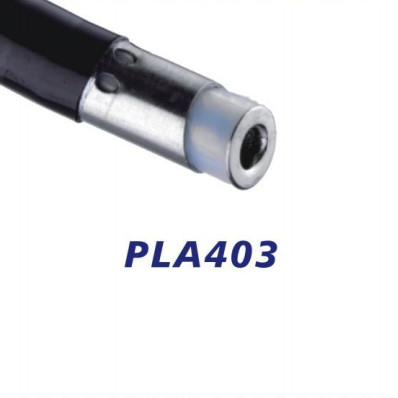

Tip enlarge image

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 3

05 Packaging & Delivery

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 4

Selling Units: Single item
Single package size: 44X17X2 cm
Single gross weight: 0.200 kg
Package Type: by carton

06 Necessary Certificates

Complete production line for plasma equipment
Compliance with GMP and ISO13485 standards
Global export to Europe, East Asia, and Africa

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 5

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 6

07 Latest Exhibition & Training Courses

1. MEDICA 2023 in German

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 7

At MEDICA, we communicate face to face with new and old friends, introduce our products and listen to customer needs. It was a pleasant trip to the exhibition.

2. FIME 2023 in USA

Otolaryngology Head and Neck Plasma Radiofrequency Wands for laryngeal tumor resection and Laryngeal Lesion Debulking 8

4. IFOS in Dubai

08 Company profile

Nanos Medical holds a prominent position in the domestic market for otolaryngology diagnosis and treatment. Its primary product lineup encompasses low-temperature plasma surgery systems, power systems, medical endoscope camera systems, Eustachian tube balloon dilation catheters, sinus balloons, disposable nasopharyngeal airways, sinus drug-eluting stents, surgical instruments, and more. The company is dedicated to promoting twelve cutting-edge minimally invasive surgical technologies, providing a wide range of diagnostic and treatment options that benefit numerous otolaryngology patients. Its efforts contribute to the advancement of professional discipline in over 2,000 otolaryngology and head and neck surgeries both domestically and internationally.
